What Is Scan to BIM?
Scan to BIM — also referred to as reality capture to BIM or point cloud to BIM — is the process of using 3D laser scanning technology to capture the precise geometry of an existing structure and then converting that data into a detailed Building Information Model (BIM). The resulting BIM model accurately reflects the real-world as-built conditions of a building, including walls, floors, columns, MEP systems, and more.
Unlike traditional manual surveying, Scan to BIM dramatically reduces the time spent on-site, eliminates human measurement errors, and produces a rich digital twin that every project stakeholder can work from — architects, structural engineers, MEP designers, and facility managers alike.
Key definition: Scan to BIM is the bridge between the physical and digital world in the construction industry. It converts a cloud of millions of measured points into an intelligent, parametric BIM model built to project-specific standards.
How the Workflow Works — Step by Step
The Scan to BIM workflow follows a clear sequence of stages, each building on the last. Understanding each phase helps project teams plan timelines accurately and set realistic expectations for deliverables.
Site Survey & Laser Scanning
A surveyor or BIM specialist sets up a high-accuracy 3D laser scanner at multiple positions throughout the building. The scanner emits millions of laser pulses per second, each measuring a precise XYZ coordinate and often color (RGB) data. Each scanner position is called a “scan station.”
Registration & Point Cloud Processing
Raw scans from each station are merged — or “registered” — into a single unified point cloud using specialist software such as Autodesk ReCap or Leica Cyclone. Targets or cloud-to-cloud algorithms align the scans with sub-millimeter precision.
Point Cloud Import into BIM Software
The registered point cloud is imported into a BIM authoring tool — most commonly Autodesk Revit. The point cloud appears as a navigable 3D reference environment. BIM modelers can orbit around it, section through it, and use it as the backdrop for modeling.

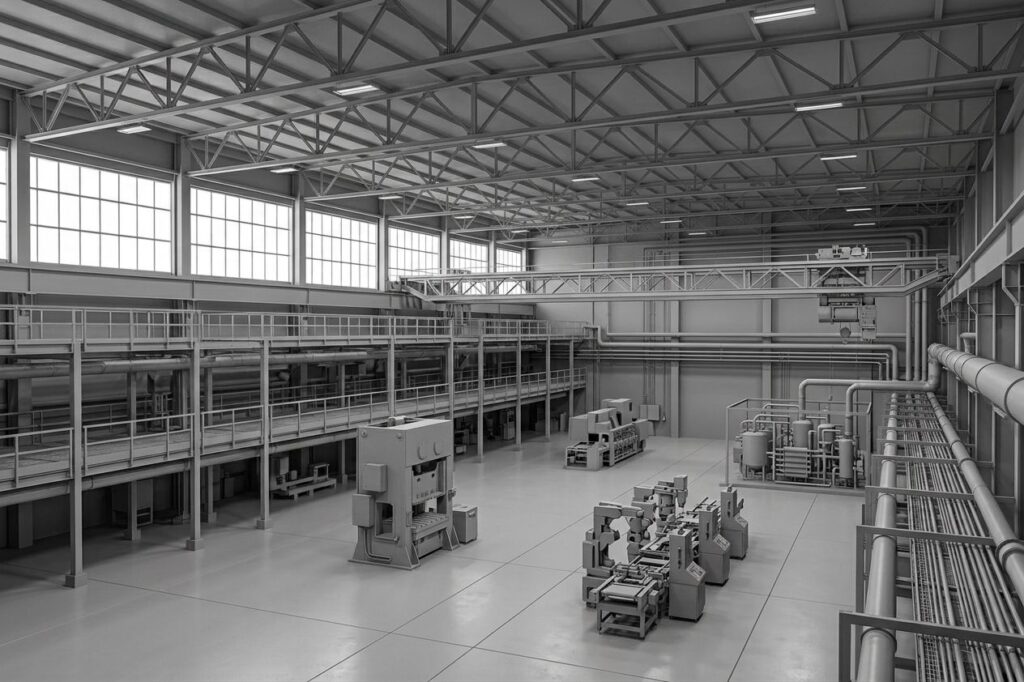

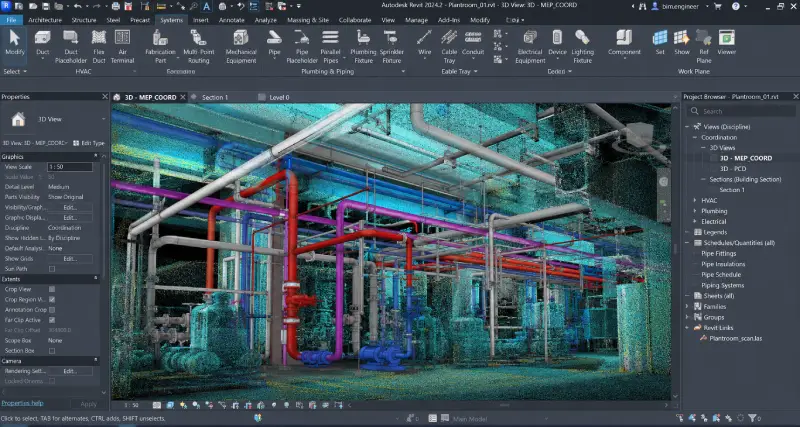

BIM Modeling from the Point Cloud
Skilled BIM engineers trace over the point cloud to place Revit families and elements — walls, slabs, beams, columns, pipes, ducts, cable trays — at their exact positions. This is done manually, semi-automatically (using plug-ins like Scan Essentials), or fully automatically for simple geometry.
Quality Assurance & Delivery
The completed model is checked against the point cloud for accuracy, coordinated across disciplines, and delivered to the client in the agreed format — Revit (.rvt), IFC, NWD, or 2D drawings extracted from the model. A clash detection review may also be included at this stage.
The Technology: Laser Scanning and Point Clouds

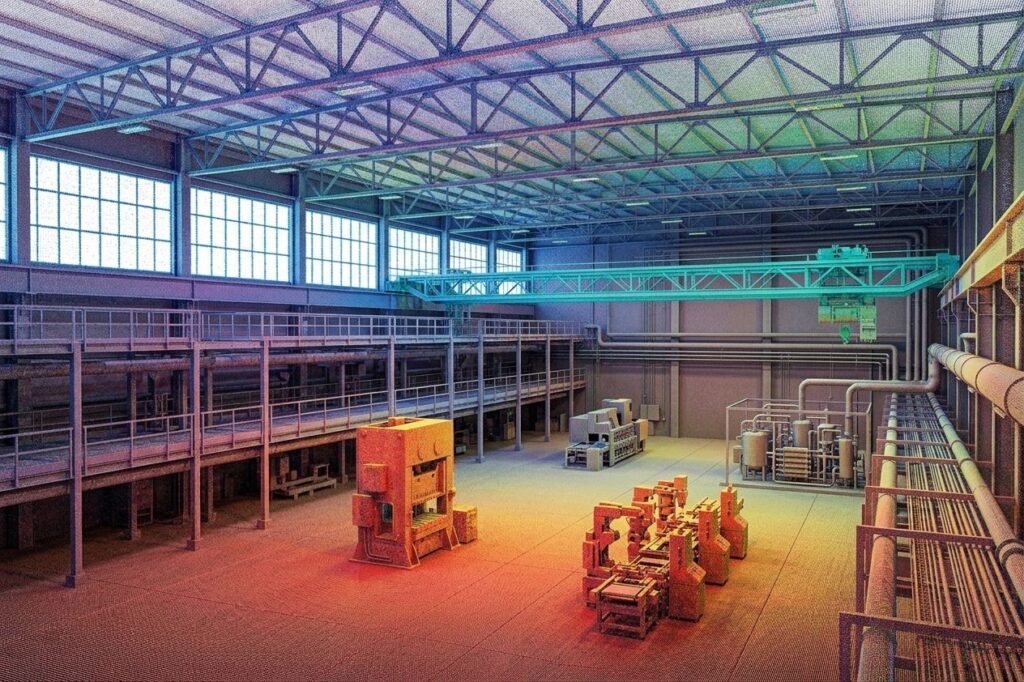

The core technology enabling Scan to BIM is terrestrial laser scanning (TLS), also called LiDAR (Light Detection and Ranging). A laser scanner emits a rotating beam of infrared light, measures the time it takes for the pulse to return (time-of-flight), and calculates the precise distance to each surface it hits. This process produces a point cloud — a dense, three-dimensional dataset made up of millions (sometimes billions) of individual points, each with X, Y, and Z coordinates.
Modern scanners like the Leica BLK360, FARO Focus, and Trimble X7 can capture a full 360° scan of a room in under two minutes with accuracy to within ±1–3 mm. Some scanners also capture 360° photography simultaneously, allowing the point cloud to be colorized (RGB) and viewed as an immersive panoramic environment.
// Traditional Survey
- Manual tape measures and total stations
- Limited data capture — key dimensions only
- Days or weeks on-site
- High risk of missed geometry
- 2D drawings as the main output
// Laser Scan to BIM
- Millions of measured points per scan
- Complete capture of all visible geometry
- Hours on-site, not days
- Sub-millimeter accuracy verified against point cloud
- 3D intelligent BIM model as the output
Levels of Detail (LOD) in Scan to BIM
Just like any other BIM deliverable, Scan to BIM models are produced to a defined Level of Development (LOD). The chosen LOD depends on the project’s purpose — a feasibility study needs less detail than a full fit-out or MEP coordination exercise. Agreeing on the LOD upfront is critical to scoping the work and cost accurately.
| LOD | What Is Modeled | Typical Use |
|---|---|---|
| LOD 100 | Basic massing, building outline, overall footprint | Feasibility, early planning |
| LOD 200 | Generic elements — walls, floors, roofs with approximate size | Concept design, area scheduling |
| LOD 300 | Accurate geometry, structural elements, openings, MEP zones | Renovation design, permit applications |
| LOD 350 | Detailed coordination geometry, connections, attachments | MEP coordination, clash detection |
| LOD 400 | Full fabrication-level detail, manufacturer-specific families | Prefabrication, shop drawings |
Software Used in Scan to BIM
A full Scan to BIM project typically involves several software tools across its different phases. The two most widely used environments in professional practice are:
Autodesk ReCap Pro
ReCap Pro is Autodesk’s dedicated reality capture platform. It imports raw scan files from virtually all major scanner manufacturers, performs automated or manual scan registration (alignment), cleans the point cloud, and exports it in formats compatible with Revit (.rcp/.rcs). It also supports photogrammetry, allowing drone or camera-based point clouds to be processed alongside laser scan data.
Autodesk Revit + Scan Essentials
Revit is the industry-standard BIM authoring platform and the most common destination for Scan to BIM work. With the built-in Scan Essentials plug-in (available from Revit 2021 onward), modelers can slice through the point cloud in any direction, snap to point cloud surfaces, and use AI-assisted tools to automatically detect and place floors and walls. The entire modeling workflow happens directly inside Revit.
Leica Cyclone / FARO Scene
Scanner-native processing software is often used before importing into ReCap. Leica Cyclone (for Leica scanners) and FARO Scene (for FARO devices) handle the initial registration and quality control of raw scan data with more granular control than ReCap’s automated pipeline.
Key Benefits for AEC Projects
The case for Scan to BIM goes beyond convenience. For renovation, fit-out, and retrofit projects — where existing conditions are unknown until surveyed — it is often the difference between a coordinated project and a costly on-site rework.
Millimeter Accuracy
Point cloud data is accurate to ±1–3 mm, capturing deformations, out-of-plumb walls, and variations that manual surveys miss entirely.
Reduced Survey Time
A full building floor can be captured in hours rather than days. Less time on-site means lower disruption to occupants and faster project kickoff.
Single Source of Truth
The as-built BIM model becomes the coordinated reference for all disciplines — architecture, structure, MEP — replacing scattered PDF drawings and conflicting records.
Early Clash Detection
Designing new MEP systems over a verified as-built model reveals clashes in the model — not on-site. Rework costs drop significantly.
Prefabrication Ready
At LOD 400, the Scan to BIM model gives fabricators the exact geometry they need to manufacture pipe spools and duct sections off-site.
Facility Management
The delivered model carries asset data — room names, equipment tags, maintenance access zones — that building owners use for CAFM and FM workflows long after handover.
Common Use Cases
Scan to BIM is not limited to a single building type or project phase. The technology is used across the full construction lifecycle.
Building Renovation & Refurbishment
Before any renovation begins, existing conditions must be documented. Scan to BIM provides the design team with an accurate as-built model of the existing structure, so new layouts, services, and finishes can be designed to fit reality — not assumed dimensions. This is particularly valuable for listed buildings or heritage structures where original drawings may be missing or inaccurate.
MEP Retrofit and Upgrade
Replacing or upgrading HVAC, electrical, or plumbing systems inside an occupied building requires knowing exactly what is already there. The Scan to BIM model reveals hidden ceiling void depths, existing pipe routes, structural obstructions, and available clearances — enabling MEP engineers to design new systems that fit without costly on-site modifications.

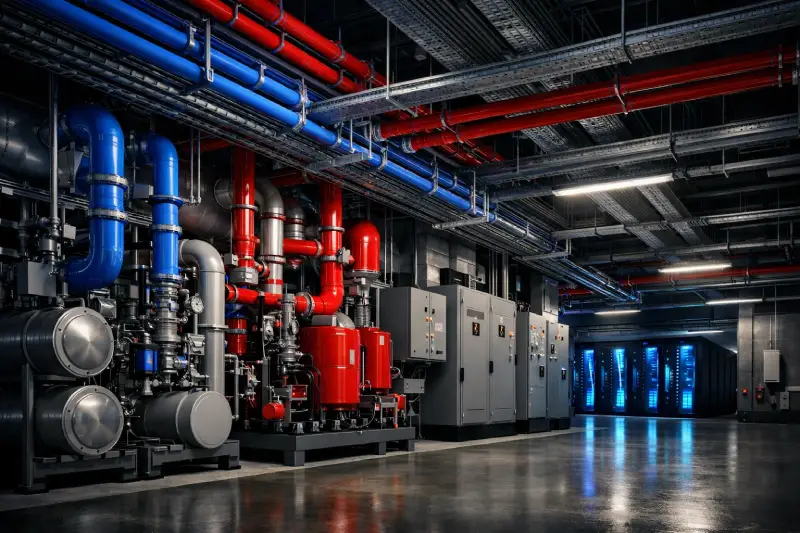

Data Centre and Critical Infrastructure
Data centers demand millimeter precision in infrastructure design. Any clash between a new cooling unit and an existing cable tray can cause critical downtime. Scan to BIM provides the verified spatial context that data center engineers need to plan new power distribution, cooling, and containment with confidence.
Historic Preservation and Documentation
Laser scanning is used widely to document the geometry of heritage buildings, monuments, and historic sites. The resulting point cloud and BIM model create a permanent digital record that supports structural analysis, restoration planning, and public access through virtual tours.
Industry insight: According to a 2024 NBS BIM Report, 74% of BIM-adopting firms report that accurate as-built information significantly reduces construction-phase rework. Scan to BIM is the most reliable method of capturing that information before design begins.
