Using Worksets in BIM Environments

Using Worksets in BIM environments enables project teams to effectively coordinate collaborative work on large models. This tool is especially valuable in complex projects where task division and access management to different parts of the model are crucial.

Organization by Discipline:

Worksets are a powerful tool in the BIM environment that allow users to organize and manage model elements efficiently. Below are several ways to use worksets effectively:

  • Create separate worksets for each project discipline (e.g., architecture, HVAC engineering, electrical).
  • This simplifies filtering and viewing elements related to a specific discipline.

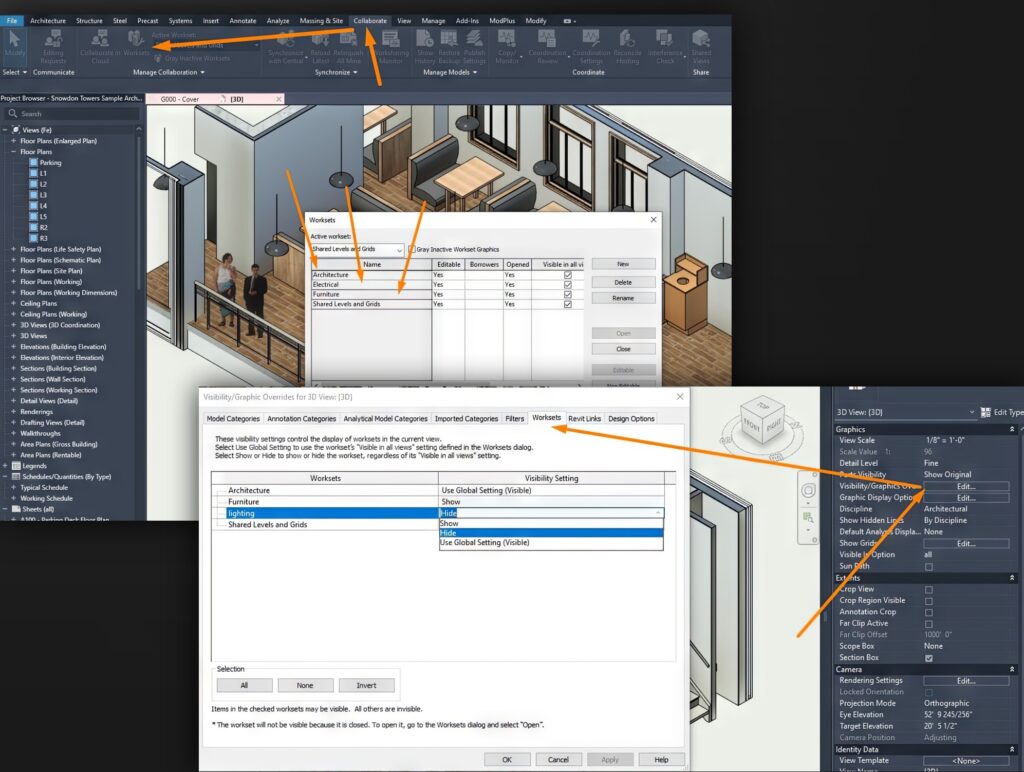

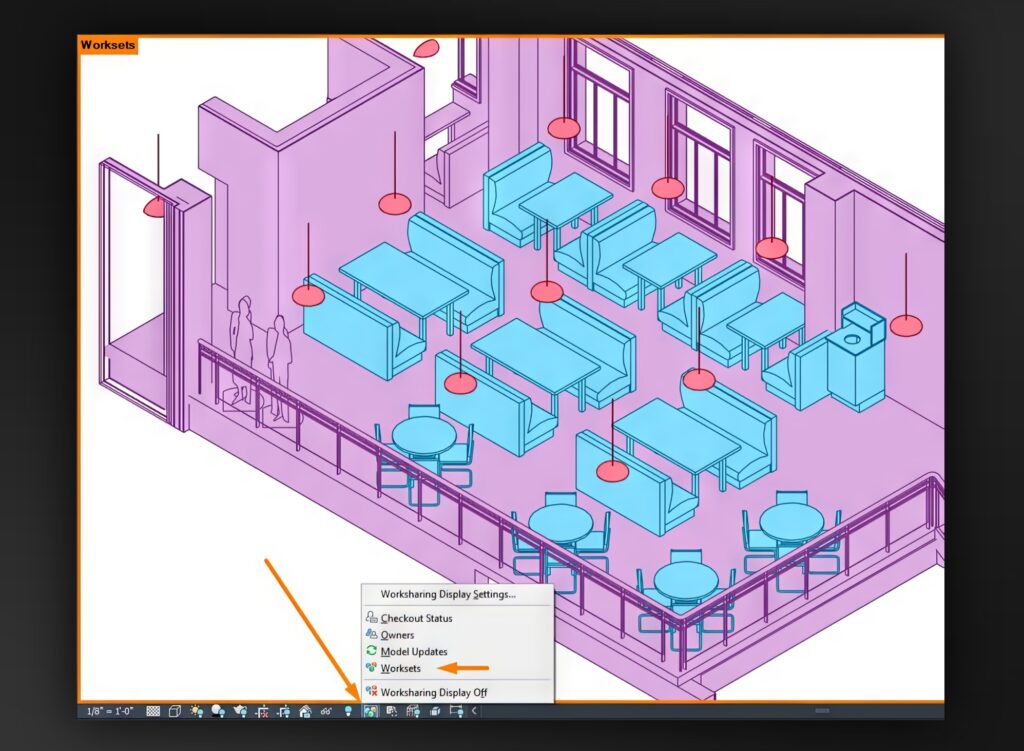

Visibility Control:

  • Use worksets to manage the visibility of model elements.
  • For example, you can create worksets for different building levels and display only the elements on the current level.

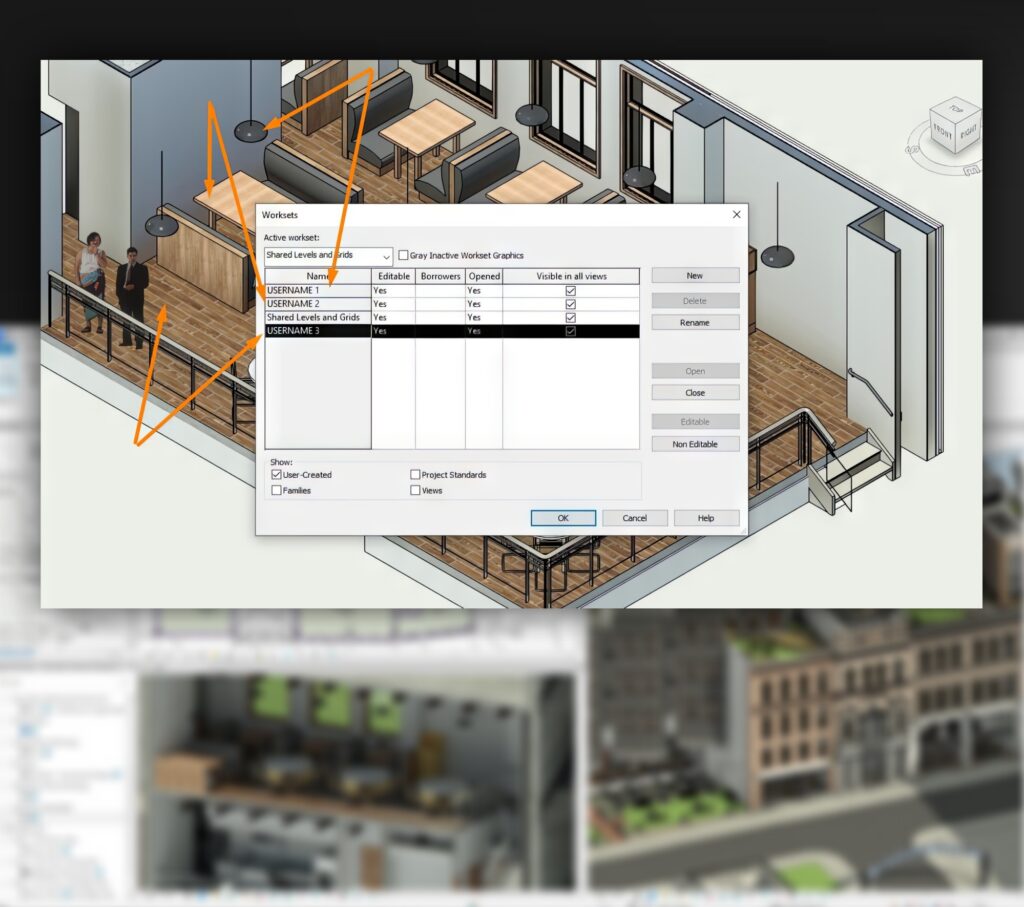

Collaboration and Coordination:

  • Worksets facilitate collaboration by allowing different sets to be assigned to specific team members.
  • This helps prevent conflicts and ensures each team member has access only to the elements they need.

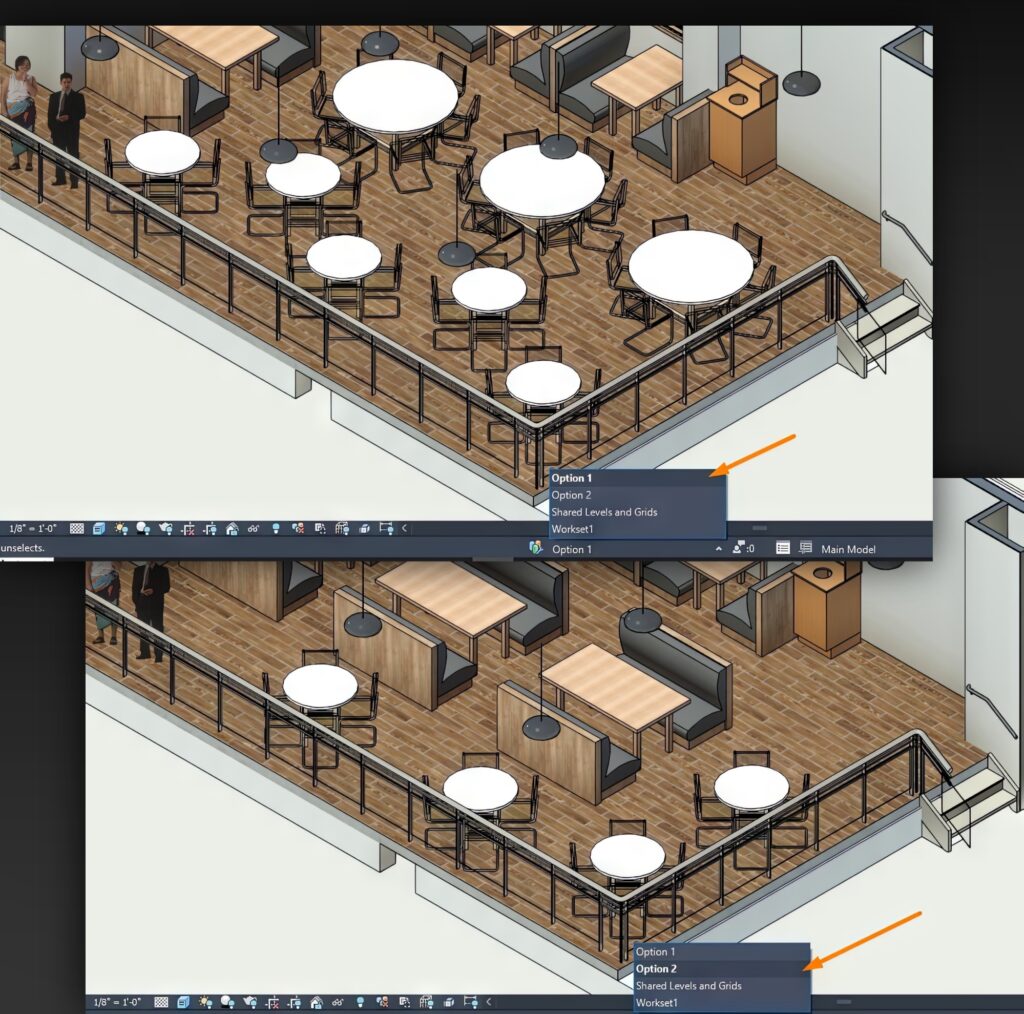

Change Management:

  • Create worksets for different project versions or stages.
  • This helps track changes and compare different versions of the model.

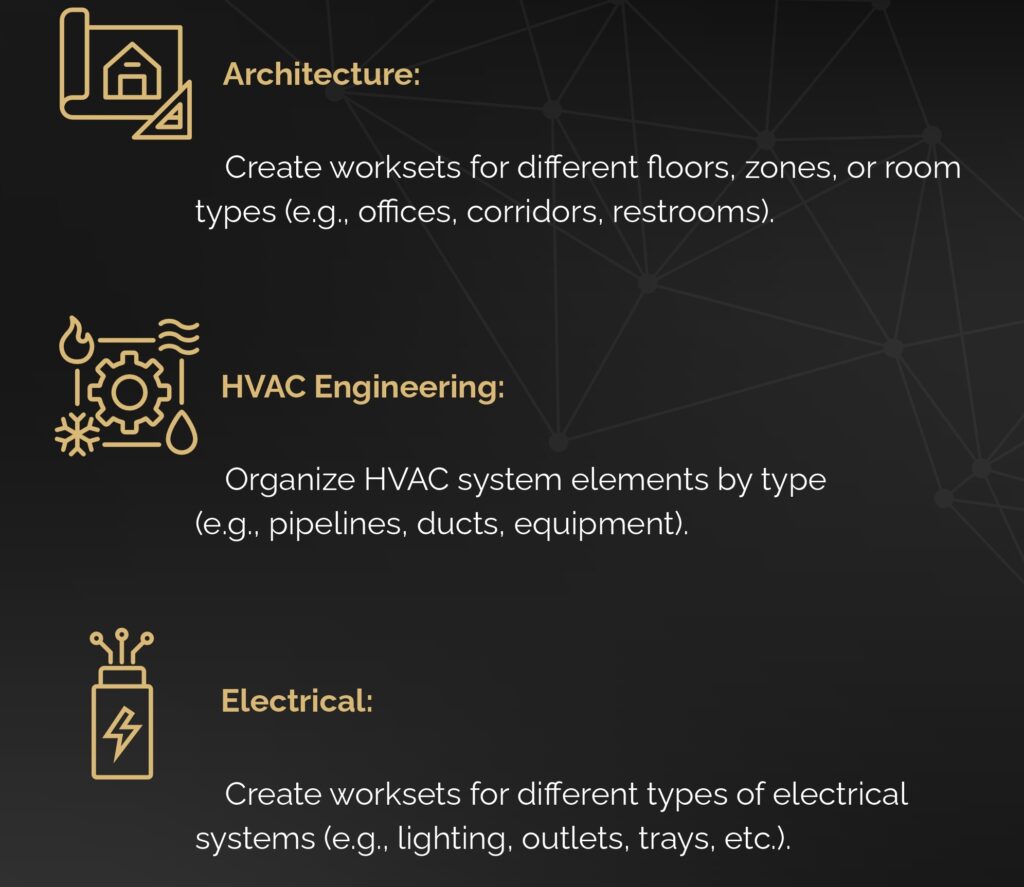

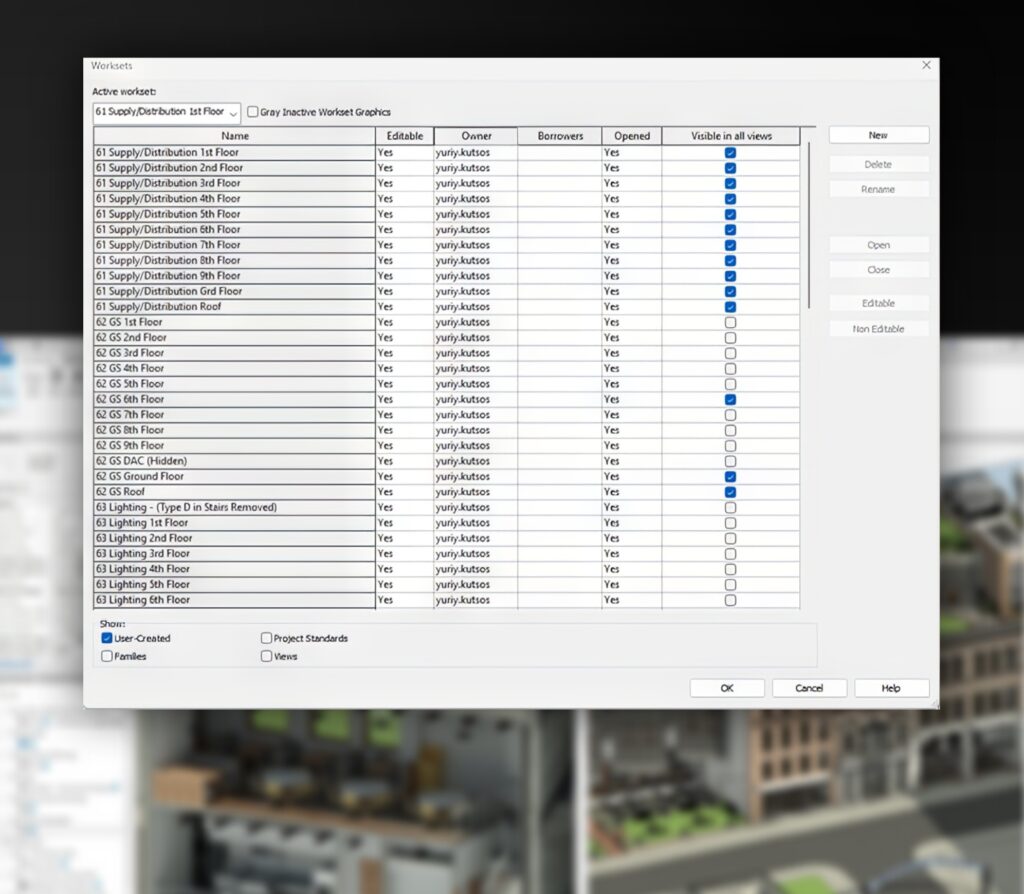

Examples of Workset Applications

  • Architecture: Create worksets for different floors, zones, or room types (e.g., offices, corridors, restrooms).
  • HVAC Engineering: Organize HVAC system elements by type (e.g., pipelines, ducts, equipment).
  • Electrical: Create worksets for different types of electrical systems (e.g., lighting, outlets, trays, etc.).

Best Practices

  • Use a Hierarchical Structure: Organize worksets into a logical hierarchy to simplify navigation and management.
  • Assign Elements Intelligently: Be consistent and thoughtful when assigning elements to worksets.
  • Use Filters: Leverage filters to isolate elements in specific worksets for viewing or editing.
  • Review and Update Regularly: Periodically review and update worksets to ensure their relevance.
