Isolation Valves

ADVANTAGES AND DISADVANTAGES

Exploring types of isolation valves: their advantages and disadvantages. How to choose the best option for your project? Read our overview and make an informed decision!

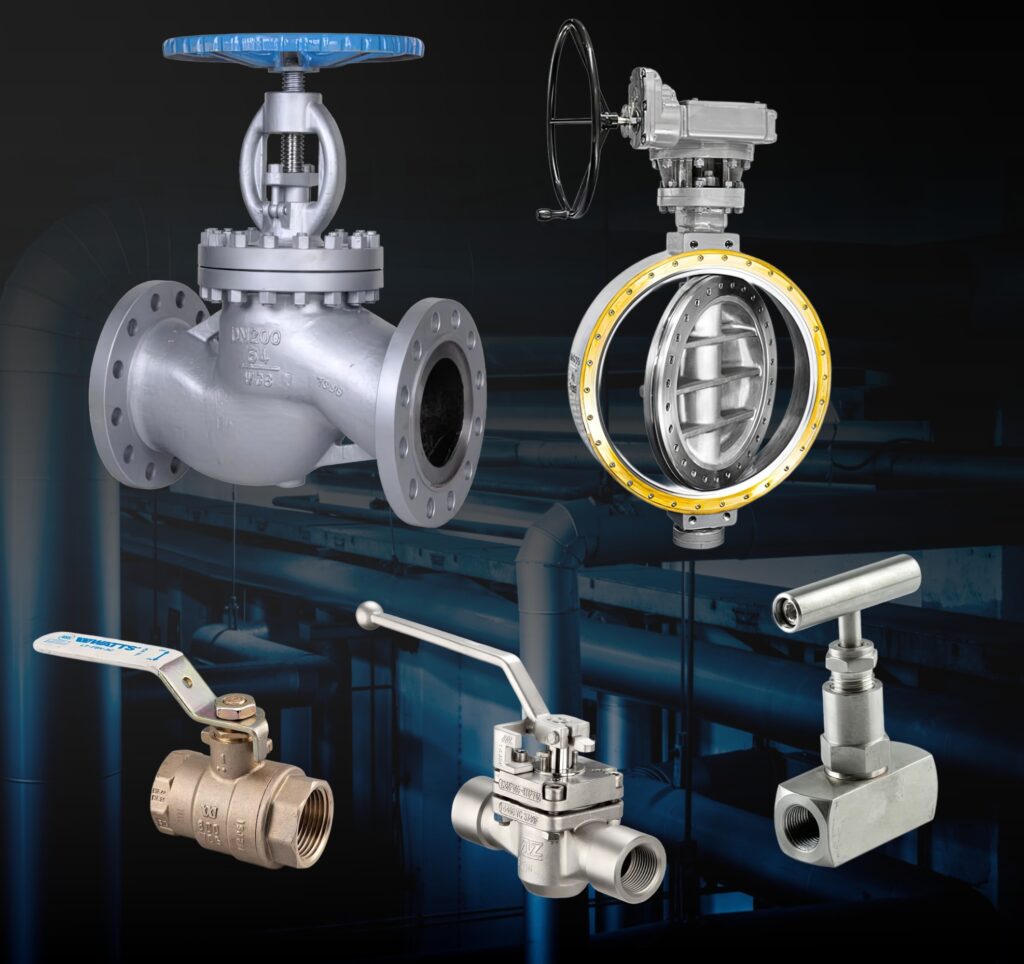

Isolation valves are critical components in industrial piping systems, designed to stop the flow of fluid for maintenance, repairs, or system shutdowns. Below are some common types of isolation valves, along with their advantages and disadvantages.

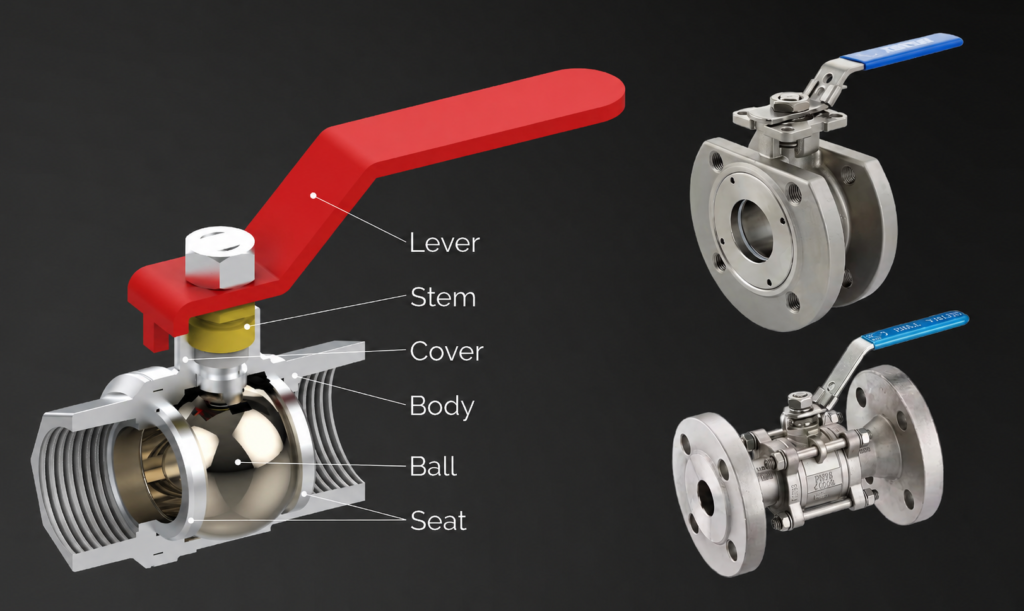

BALL VALVES

Ball valves use a rotating spherical disc to control flow.

  • Advantages:
    • Quick to operate (90-degree turn).
    • Excellent sealing capabilities, even after prolonged use.
    • Compact and lightweight design.
  • Disadvantages:
    • Not suitable for throttling due to potential wear on the ball and seats.
    • More expensive than gate valves.

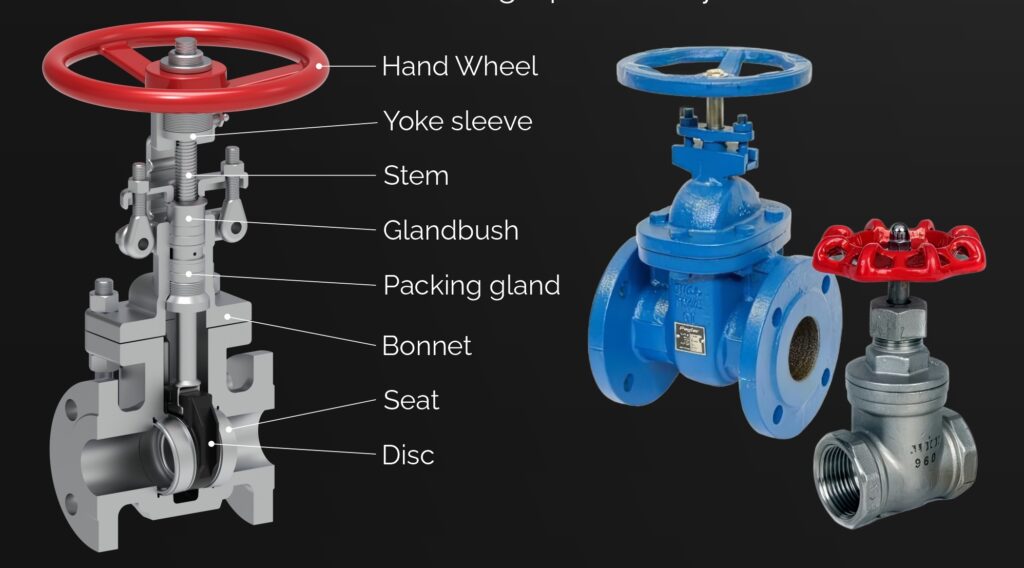

GATE VALVES

Gate valves use a sliding gate to control fluid flow.

Advantages:

  • Minimal pressure drop when fully open.
  • Suitable for straight-line flow and full shutoff.
  • Cost-effective for large-diameter pipes.

Disadvantages:

  • Slow operation due to the linear motion of the gate.
  • Not ideal for throttling, as partial opening can cause damage.
  • Prone to wear over time in high-pressure systems.

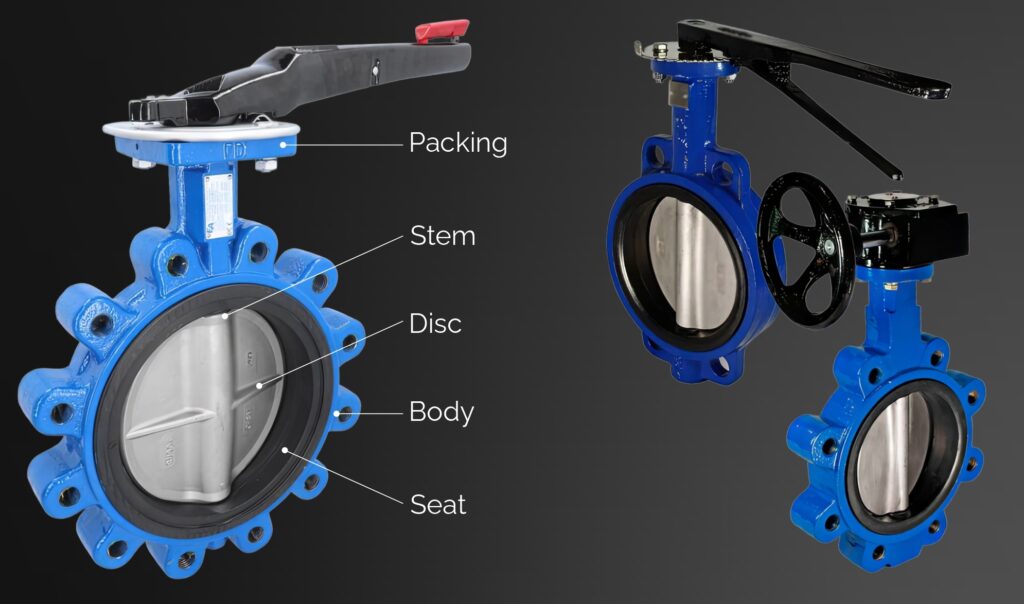

BUTTERFLY VALVES

Butterfly valves feature a rotating disc for flow control.

  • Advantages:
    • Lightweight and compact design.
    • Quick operation with low torque requirements.
    • Ideal for large-diameter applications.
  • Disadvantages:
    • Not as effective at sealing compared to ball valves.
    • Potential pressure drop when partially open.

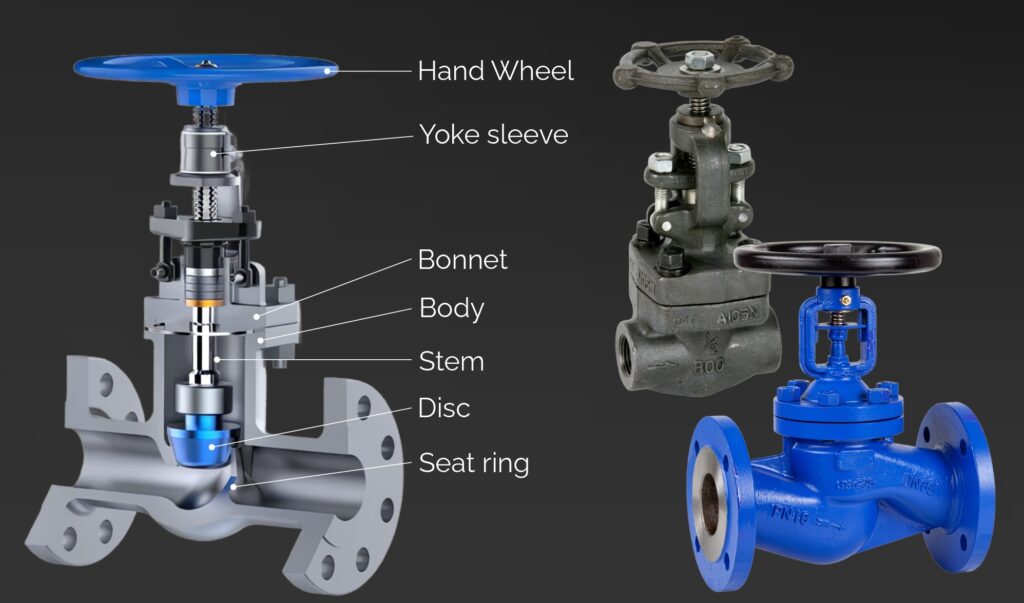

GLOBE VALVES

Globe valves use a movable disk to regulate flow.

  • Advantages:
    • Ideal for throttling and precise flow control.
    • Good sealing capabilities.
    • Durable in high-pressure environments.
  • Disadvantages:
    • Higher pressure drop compared to other valves.
    • More expensive and larger than gate or ball valves.

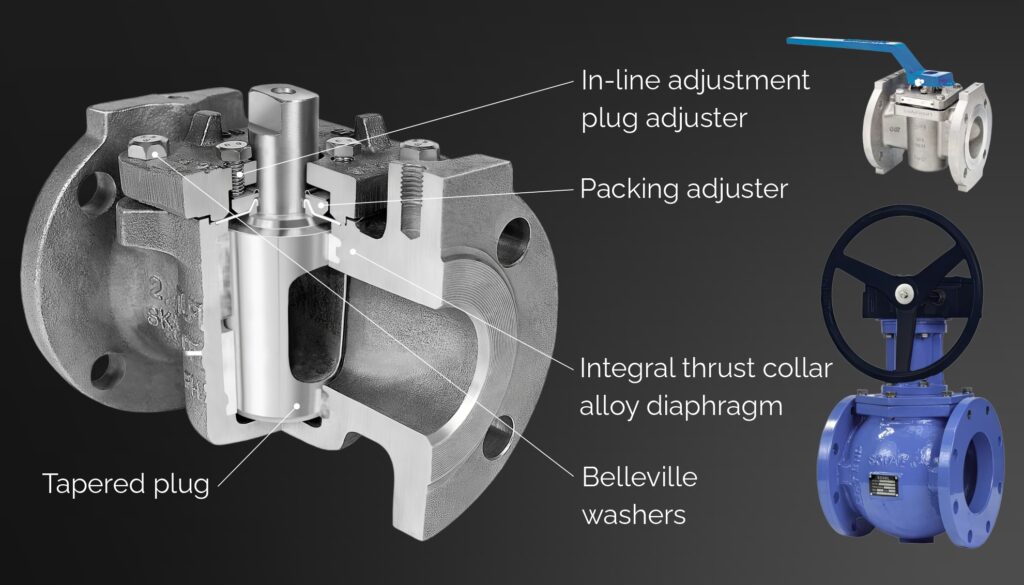

PLUG VALVES

Plug valves use a cylindrical or conical plug to regulate flow.

  • Advantages:
    • Simple design with quick operation.
    • Suitable for handling fluids with suspended solids.
    • Reliable sealing performance.
      Disadvantages:
      High operating torque.
    • May require frequent maintenance in abrasive conditions.

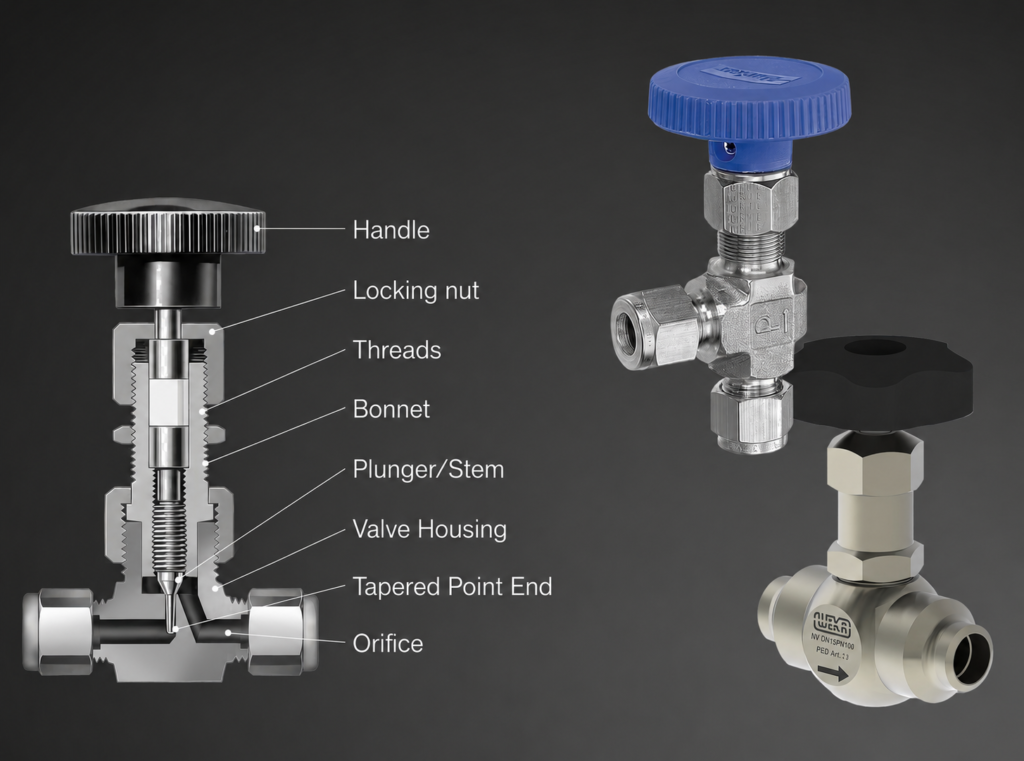

NEEDLE VALVE

Ideal for precision applications, but not suitable for high-flow systems.

Advantages:

  • Precise flow control for fine adjustments.
  • Handles high pressure effectively.
  • Compact and leak-proof design.

Disadvantages:

  • Limited to low flow rates.
  • Slow operation with multiple turns.
  • Prone to wear with frequent use.
